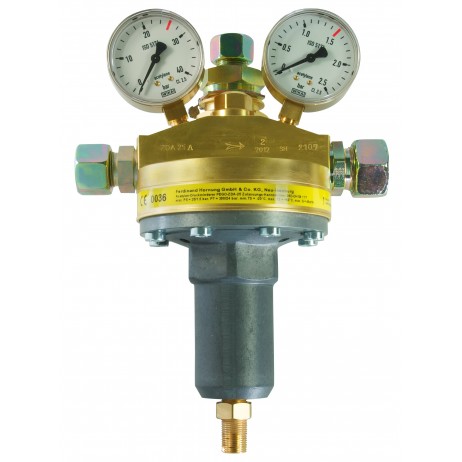

Central Pressure Regulator ZDA25

The central pressure regulator ZDA25 reduces a maximum inlet pressure from 25 bar down to max. 1,5 bar.

Suitable for connection to acetylene batteries and 2x3 bundles.

The ZDA25 is a single stage brass regulator with safety valve certified to DIN EN 961.

Max. inlet pressure:	25 bar
Outlet pressure ranges:	max. 1.5 bar
Connections:	inlet: clamp screw Ø 16. outlet: clamp screw Ø 22
Gas:	Acetylene
Model:	ZDA 25

To identify the correct order code for your central pressure regulator ZDA25

Simply request a 'central pressure regulator ZDA25'.
