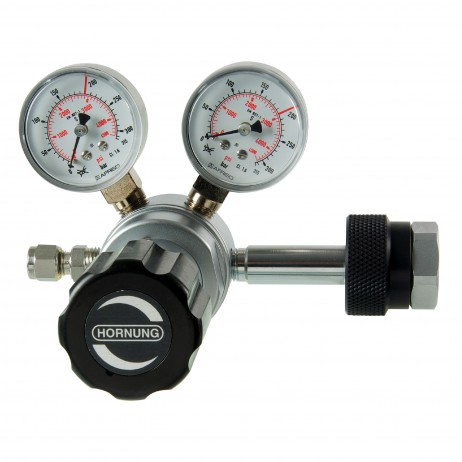

To identify the correct order code for your HP120
Start with the model number, then add the appropriate number options from columns A, B, & C in the table below followed by the gas to be used.
HP120-1-2-3-2-Argon specifies a HP120 model in stainless steel with 300 bar inlet pressure, 10-200 bar outlet pressure ranges & 6mm compression fitting, for use with Argon gas.
A |
B
|
C |
D
|
Material |
Inlet Pressure
|
Outlet Pressure ranges |
Options for the outlet |
1 = stainless steel |
1 = 200 bar |
1 = 5 - 50 bar |
1 = 1/4“ NPT - internal thread |
2 = brass |
2 = 300 bar |
2 = 5 - 100 bar |
2 = compression fitting 6 mm |
|
|
3 = 10 - 200 bar |
|
