Cylinder station

2x1 cylinder (bundle) dual stage with automatic changeover – sequential version

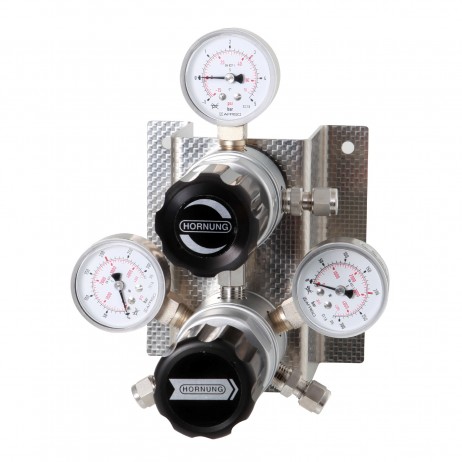

The HP 253 is a dual stage panel for central gas supply with automatic changeover.

It serves the safe supply of high purity and mixed gases from 2 single cylinders or cylinder bundles.

The changeover sets in as soon as the pressure in the first side sinks below a predetermined level. This process is controlled by two installed regulators which are connected through one mutual housing.

Two stage regulators will be used when a stable outlet pressure is required. The station is mounted on a stainless steel console and in standard version it consists of three pressure regulators and the in- and outlet gauges.

Special characteristics:
The HP 253 is a special version of a typical cylinder station with automatic changeover.

It combines two pressure regulators which are placed in sequential position in one housing to save space.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: stainless steel 1.4404 electropolished or brass nickel and matt chrome plated
Diaphragm: 1.4435
Leakage Rate: 10-8 mbar l/s He against atmosphere
Gas purity: < 6.0
Max. inlet pressure: 300 bar
Outlet pressure ranges: 0.1-1, 0.1-3, 1-6 bar
Cv: 0.06
Operating temp.: -20°C to +70°C
Gauges: inlet gauge
outlet gauge
Dimensions (wxhxd): 125 x 135 x 205 mm
Weight: 4000 g
Connections: NPT 1/4“ f

Especially for gases with high requirements on purity up to 6.0, safety and density for which an uninterrupted supply overnight and weekends must be guaranteed.

The supply concept can be optimised by options such as contact gauges and gas alarm boxes (see segment 7).

Through our special cleaning system our pressure regulators are suitable for ECD – applications.

To identify the correct order code for your HP253

Start with "HP253-", then add the appropriate number options from columns A, B, C & D  in the table below followed by the gas to be used.

HP253-2-1-1-1-Argon specifies a HP253 model in brass with 200 bar inlet pressure, 0.1-1 bar outlet pressure & standard gauges, for use with Argon gas.

Material Inlet pressure (p1) Outlet pressure (p2) Gauges
1 = stainless steel 1 = 200 bar 1 = 0.1 - 1 bar 1 = standard gauge
2 = brass 2 = 300 bar 2 = 0.1 - 3 bar 2 = contact gauge ex
    3 = 1 - 6 bar
