Especially for gases with high requirements on purity up to 6.0, safety and density for which an uninterrupted supply overnight and weekends must be guaranteed.
The supply concept can be optimised by options such as contact gauges and gas alarm boxes.
Through our special cleaning system our pressure regulators are suitable for ECD – applications.

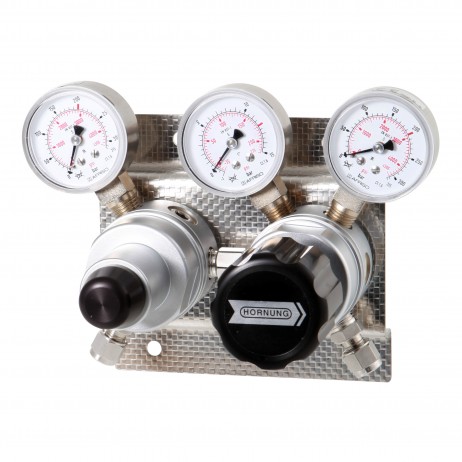

To identify the correct order code for your HP254
Start with "HP254-", then add the appropriate number options from columns A, B, C & D in the table below followed by the gas to be used.
HP254-2-1-1-1-Argon specifies a HP254 model in brass with 200 bar inlet pressure, 10 - 12 bar outlet pressure & standard gauges, for use with Argon gas.
|
A |
B
|
C
|
D
|
|
Material |
Inlet pressure (p1) |
Outlet pressure (p2) |
Gauges |
|
1 = stainless steel |
1 = 200 bar |
1 = 10 - 12 bar |
1 = standard gauge |
|
2 = brass |
2 = 300 bar |
2 = 45 - 55 bar |
2 = contact gauge ex |
