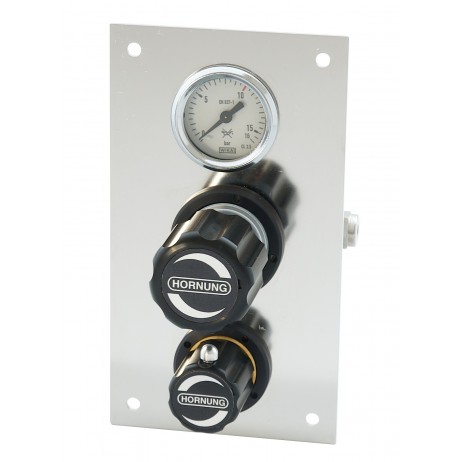

HP403

Mounted on a panel.

It serves the safe supply of pure and mixed gases. The station is connected to gas supply line.

A diaphragm shut-off valve and a single stage pressure regulator with gauge are supplied as standard.

Body:	stainless steel 1.4404 electropolished or brass, nickel and matt chrome plated
Seat:	PCTFE
Diaphragm:	1.4435 stainless steel
Gas purity:	≤ 6.0
Max. inlet pressure:	40 bar
Outlet pressure ranges:	0.5-3, 1-6, 1-10 bar
Operating temp.:	-20°C to +70°C
Connections:	inlet: G 1/4" f outlet: G 1/4" f

Especially for gases with high requirements on purity to 6.0. secure and leak proof.

Through a special cleaning system the pressure regulators are suitable for ECD applications.

To identify the correct order code for your HP403

Start with the model number, then add the appropriate number options from columns A, B & C in the table below followed by the gas to be used.

HP403-1-3-0-Argon specifies a HP403 model in stainless steel with 1-10 bar pressure range & G 1/4" female part outlet, for use with Argon gas.
