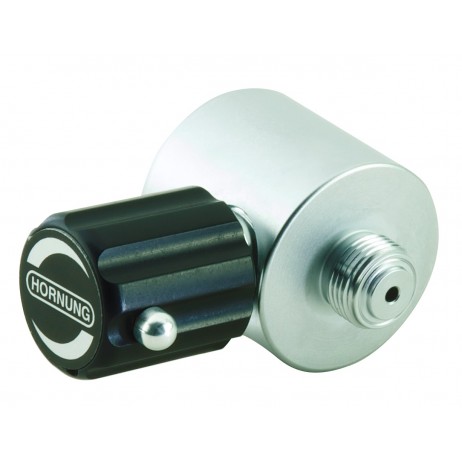

The HP501 can be used with pressure regulator HP410 for laboratory benches or wall mounting. HP501 can be connected with the pipe system from the left, the right and from above.
To identify the correct order code for your HP501
Start with the model number, then add the appropriate number options from columns A & B in the table below followed by the gas to be used.
HP501-1-06-Argon specifies a HP501 model in stainless steel with compression fitting 6mm outlet, for use with Argon gas.
A |
B |
Material |
Outlet Option |
1 = stainless steel |
06 = compression fitting 6mm |
2 = brass |
08 = compression fitting 8mm |
|
10 = compression fitting 10mm |
