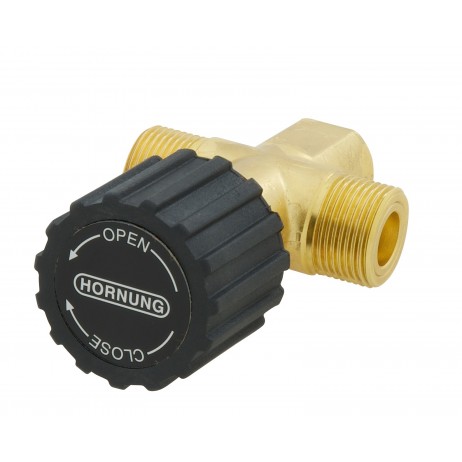

To identify the correct order code for your AV6/AV6 F
Start with the model number, then add the appropriate number options from columns A & B in the table below followed by the gas to be used.
AV6-1-0-Argon specifies a AV6 model with in-/outlet DIN 8542, G3/4" housing connections without filter element, for use with Argon gas.
A |
B |
Housing Connections |
Filter Element |
1 = in-/outlet DIN 8542, G3/4" |
0 = without filter |
2 = in-/outlet DIN 477 / Nr. 9, G3/4" |
1 = with filter [=AV6 F] |
3 = inlet: DIN 477 / Nr. 9 G3/4"
outlet: DIN 3852, M16x1.5 |
|
4 = inlet: DIN 8542, G3/4"
outlet: DIN 3852, M16x1.5 |
|
5 = inlet: DKOS-S16 / M24x1.5
outlet: DKOS-S16 / M24x1.5 |
|
6 = inlet: M16x1.5 Innengewinde
outlet: DKOS-S16 / M24x1.5 |
|
