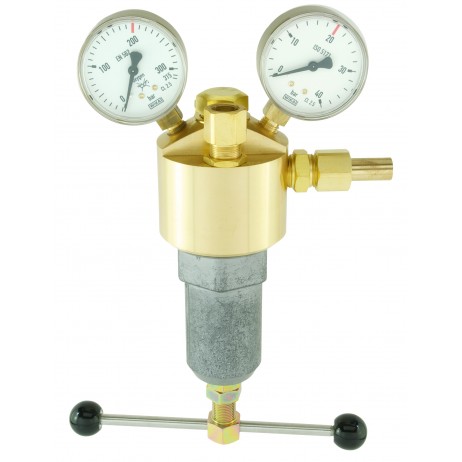

Central Pressure Regulator ZD150

The ZD150 is supplied in brass for non-corrosive, flammable (except acetylene) and non-flammable gases.

The ZD150 is a single stage regulator with relief valve and certified to DIN EN 961 (ISO 7291) BAM. The regulator is available in straight or 90° configuration and can also be supplied with a wall bracket.

Make an Enquiry

Technical Details
Order Details

Max. inlet pressure:	300 bar
Outlet pressure ranges:	max. 40 bar
Connections:	inlet: W21,8 x 1/14" DIN 477. outlet: G 1/2 DIN EN 560
Gas:	NF, F, NC, C
Model:	ZD 150

To identify the correct order code for your central pressure regulator ZD150

Simply request a 'central pressure regulator ZD150'.
