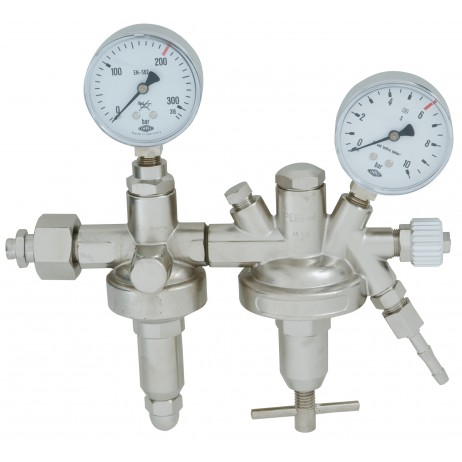

KD76

The cylinder regulator KD76 reduces the pressure of compressed gases as well as liquid gases.

The KD76 can be used when constant outlet pressure is required.

The KD76 (according to ISO 2503) is a 2-stage brass regulator with relief valve and shut-off valve for the outlet pressure.

Also available nickel or chrome plated with metal diaphragm and hand nut connection.

Max. inlet pressure:	300 bar
Outlet pressure ranges:	max. 16 bar
Connections:	inlet: cylinder DIN 477-1 / 477-5 outlet: Gas dependant DIN EN 560 G 1/4 RH G 3/8 LH
Gas:	F, NF, NC (not Acetylene)
Model:	KD 76

To identify the correct order code for your KD76

Start with the model number, then add the appropriate number options from column A in the table below followed by the gas to be used.

KD76-1-Argon specifies a KD76 model in nickel, for use with Argon gas.

Material

1 = nickel

2 = chrome plated
