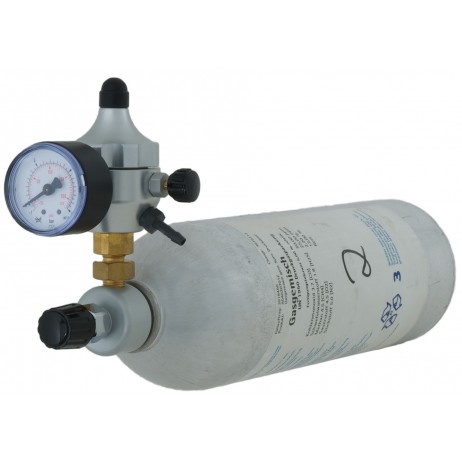

Catridge Pressure Regulator

Aluminium version till 12 bar system pressure

The cartridge pressure regulator was especially developed for gas extraction from cartridges / bottles.

The initial pressure is fixed at 0,6 bar and the through flow can be exactly positioned with the integrated flow meter.

Low weight as a result of ergonomic design and compact dimensions, optimum handling and a minimum on gas-affected surfaces.

The manometer shows the filling pressure in the cartridge pressure regulator.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: aluminium anodised
Seat: FPM (FKM/viton ®)
Diaphragm: FPM (FKM/viton ®)
Outlet pressure ranges: 0.6 bar
Operating temp.: -20°C to +60°C
Connections: inlet: UNEF 7/16" outlet: NPT 1/8" f
  • Extraction system for cartridges
  • Charging with reduced work pressure

To identify the correct order code for your ED06

Start with the model number, then add the appropriate number options from columns A & B in the table below followed by the gas to be used.

ED06-0-0-Argon specifies a ED06 model with gauge & NPT 1/8" female part outlet, for use with Argon gas.

Gauge Outlet Option
0 = with gauge 0 = NPT 1/8" f
1 = without gauge = hose nozzle 3mm bore
  = compression fitting 3mm
  3 = compression fitting 6mm
