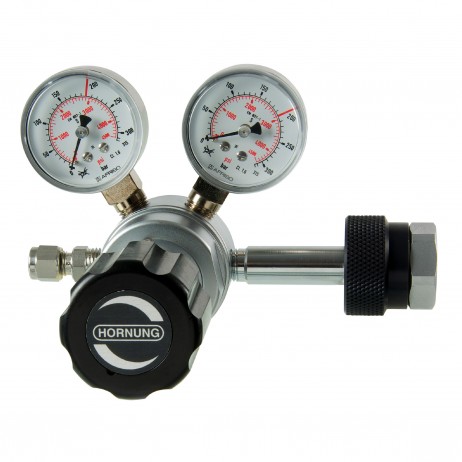

HD 400 FL

HD 400 FL

Cylinder Pressure Regulator

for high pressure applications

HD 400 FL is a single-stage pressure regu- lator made of brass, nickel and matt chrome plated or stainless steel 1.4404.

HD 400 FL is designed as a piston pressure regulator and reduces the pressure of compressed gases to a maximum outlet pressure of 300 bar.

The pressure regulator will be fitted with gas specific cylinder conector to all common national standards.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: stainless steel 1.4404 electropolished or nickel and matt chrome plated
Seat: PCTFE
Gaskets: viton / NBR
Max. inlet pressure: 300 bar
Operating temp.: -20°C to +70°C
Dimensions (wxhxd): 180 x 95 x 125 mm
Weight: 1350 g
Connections: NPT 1/4“ f

This pressure regulator is designed for use with high inlet and high outlet pressures.

High pressure applications.

The high-grade stainless steel construction with elastomer made of viton compound per- mits the use of aggressive media with this pressure regulator.

To identify the correct order code for your HD 400 FL

Start with "HD400FL-", then add the appropriate number options from columns A, & B  in the table below followed by the gas to be used.

HD400FL-2-1-Argon specifies a HD 400 FL model in stainless steel with NBR gaskets, for use with Argon gas.

A B
Material Gaskets
1 = brass, nickel and matt chrome plated 1 = NBR
2 = stainless steel 2 = viton
