Cylinder station

2x1 cylinder (bundle) single stage with manual changeover

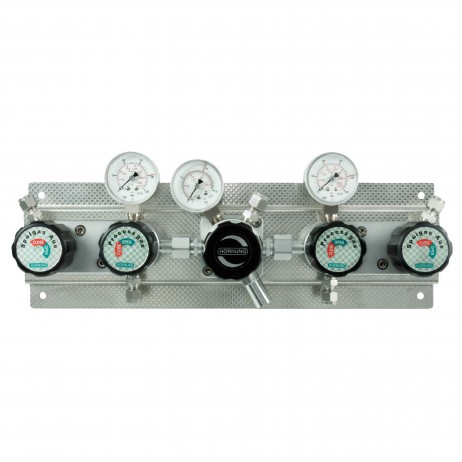

The HP 240 is a single stage panel for central gas supply with manual changeover and internal purging. It serves the safe supply of pure and mixed gases from 2 single or 2 bundled cylinders.

When changing cylinders, the gas supply must not be interrupted.

The station is mounted on a stainless steel console consisting of a pressure regulator with in and outlet pressure gauges as well as a relief valve and shut-off valve for the process gas and purge gas.

Special characteristics:
Modular design of the pressure regulator and multifunction block. Assembly and disassembly of all fixtures from the front.

Diaphragm shut-off valve in block design for process and purge gas with open and close display. Expandability for 2x2 cylinder/ bundle is already integrated.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: stainless steel 1.4404 electropolished or brass nickel and matt chrome plated
Diaphragm: 1.4435
Leakage Rate: 10-8 mbar l/s He against atmosphere
Gas purity: < 6.0
Max. inlet pressure: 300 bar
Outlet pressure ranges: 0.1-3, 0.1-6, 1-12, 1-17 bar
Cv: 0.06
Operating temp.: -20°C to +70°C
Gauges: safety version to EN 837-1 KL1.6
Dimensions (wxhxd): 400 x 125 x 135 mm
Weight: 6.4 kg
Connections: NPT 1/4“ f

Especially for gases with high requirements on purity to 6.0. secure and leak proof.

With options like contact gauges and gas alarm boxes the supply concept can be optimised further.

Through our special cleaning system our pressure regulators are suitable for ECD – applications.

To identify the correct order code for your HP240 Frontline

Start with "HP240-", then add the appropriate number options from columns A, B, C & D  in the table below followed by the gas to be used.

HP240-2-1-4-1-Argon specifies a HP240 model in brass with 200 bar inlet pressure, 1-12 bar outlet pressure & standard gauges, for use with Argon gas.

Material Inlet pressure (p1) Outlet pressure (p2) Gauges
1 = stainless steel 1 = 200 bar 2 = 0.1 - 3 bar 1 = standard gauge
2 = brass 2 = 300 bar 3 = 1 - 6 bar 2 = contact gauge ex
    4 = 1 - 12 bar
    5 = 1 -17 bar
