HP278 for Propane

HP278 for Propane

Cylinder station

1x1 cylinder

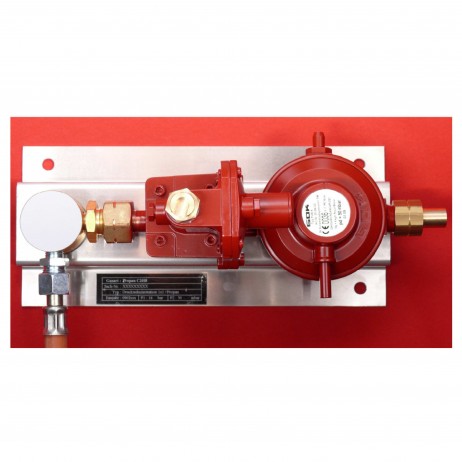

The HP 278 is a single stage cylinder station for propane. The cylinder station serves the secure supply of Propane from 1 cylinder and is available for 1 cylinder as standard.

The single cylinder station HP 278 consists of one low pressure regulator, 400 mm middle-pressure hose with safety shut-off valve and a safety blow-off valve.

Can be retrofitted with contact gauges.

In addition, as accessories, a gas failure detector and an emergency shut-off system for upgrading the safety of the system are also available (see. segment 7).

HP 242 is in full accordance with German TRF 1996 resp. BGV D34 §11 subparagraph 4.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: brass
Max. inlet pressure: 20 bar
Flow max: 4 kg/h
Outlet pressure ranges: 50 mbar,
1.5 bar fixed
0.5 - 4 bar adjustable
Operating temp.: -20°C to +70°C
Dimensions (wxhxd): 1 cylinder: 330 x 25 x 2 mm
Connections: Inlet: hose DIN 477-1

Outlet: soldering connection for 12 mm tube

Especially for gases with high requirements on material, tightness and safety.

  • For applications in laboratories
  • For Bunsen burners in laboratories

To identify the correct order code for your HP278

Start with "HP278-", then add the appropriate number options from columns A & B in the table below followed by the gas to be used.

HP278-2-1-Propane specifies a HP278 model with 1.5 bar fixed outlet pressure & no gauges, for use with Propane gas.

Outlet pressure Gauges
1 = 50 mbar fixed 1 = no gauge
2 = 1.5 bar fixed 2 = standard gauge
3 = 0.5 - 4 bar adjustable 3 = contact gauge ex
