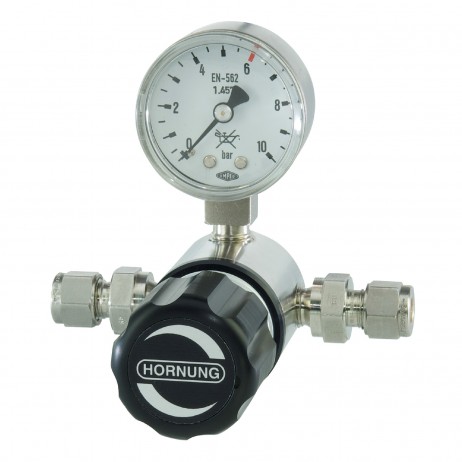

For integration in small spaces / instrumentation.
For integrating in pipe systems or (analytical) instruments. High purity gas quality in science and research.
Due to special cleaning system also suitable for ECD application.
To identify the correct order code for your HP310
Start with "HP310-", then add the appropriate number options from columns A, B, C, D & E in the table below followed by the gas to be used.
HP310-1-1-3-1-3-Argon specifies a HP310 model in stainless steel with left to right inlet, 1-10 bar outlet pressure ranges, without guages & 3mm inlet and outlets, for use with Argon gas.
|
A |
B
|
C
|
D
|
E
|
|
Material |
Inlet |
Outlet pressure ranges |
Gauges |
Inlet and outlet option |
|
1 = stainless steel electropolished |
1 = from the left to the right |
1 = 0.5 - 3 bar |
1 = without gauge |
0 = NPT 1/4“ f |
|
2 = brass, nickel and matt chrome plated |
2 = from the right to the left |
2 = 1 - 6 bar |
2 = outlet gauge
(working pressure) |
3 = compression fitting 3 mm |
|
|
|
3 = 1 - 10 bar |
|
6 = compression fitting 6 mm |
|
|
|
|
|
8 = compression fitting 8 mm |
|
|
|
|
|
10 = compression fitting 10 mm |
|
|
|
|
|
12 = compression fitting 12 mm |
