Especially for gases with high requirements on purity up to 6.0 and for laboratories and analytics.
In case of our special cleaning method the cylinder pressure regulator is ECD capable.

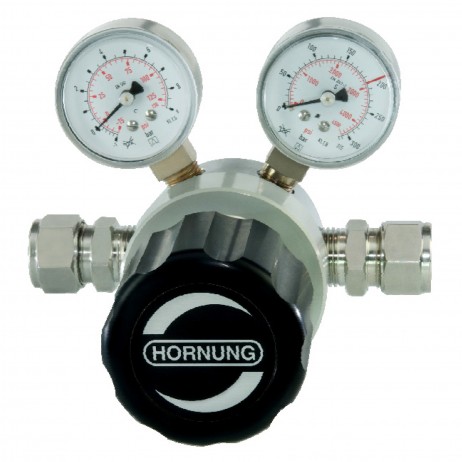

To identify the correct order code for your HP350
Start with "HP350-", then add the appropriate number options from columns A, B, C, D & E in the table below followed by the gas to be used.
HP350-1-1-3-1-6-Argon specifies a HP350 model in stainless steel with left to right inlet, 1-7 bar outlet pressure ranges, without guages & 6mm compression fitting inlet and outlets, for use with Argon gas.
A |
B
|
C
|
D
|
E
|
Material |
Inlet |
Outlet pressure ranges |
Gauges |
Option for inlet and outlet |
1 = stainless steel
|
1 = left to the right |
1 = 0.1 - 1.7 bar |
1 = without gauge |
0 = NPT 3/8“ f |
2 = brass |
2 = right to the left |
2 = 1 - 3.5 bar |
2 = with inlet and outlet
pressure gauges |
1 = NPT 1/2“ f |
|
|
3 = 1 - 7 bar |
|
6 = compression fitting 6 mm |
|
|
4 = 1 - 12 bar |
|
8 = compression fitting 8 mm |
|
|
5 = 1 - 17 bar |
|
10 = compression fitting 10 mm |
|
|
6 = 1 - 50 bar |
|
12 = compression fitting 12 mm |
|
|
|
|
15 = compression fitting 15 mm |
