Point of Use Regulator

Small sized regulator used for individual solutions with inlet from the back side

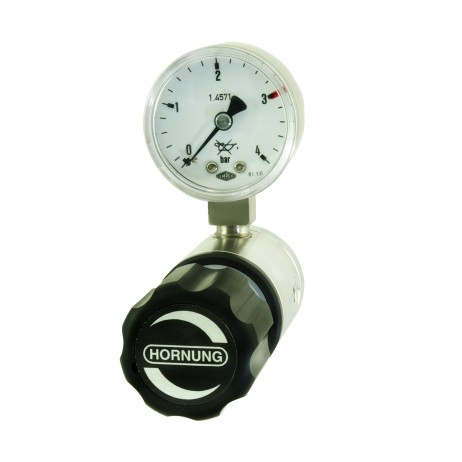

The HP410 is a single stage pressure regulator with metal diaphragm construction.

It is used as a second stage in a central gas supply system for high purity gases.

The pressure regulator will be supplied with a gauge for indicating working pressure as standard.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: stainless steel 1.4404 electropolished or brass, nickel and matt chrome plated
Diaphragm: 1.4435 stainless steel
Gas purity: ≤ 6.0
Max. inlet pressure: 40 bar
Outlet pressure ranges: 0.5-3, 1-6, 1-10 bar
Operating temp.: -20°C to +70°C
Connections: inlet: G 3/8" f outlet: G 1/4" f

The pressure regulator can be combined with the shut-off valve HP502 and the metering valve HP503. This pressure regulator is used in gas supply stations HP400, HP401, HP402 and HP403.

Especially for gases with high requirements on purity to 6.0.

A special cleaning system for the HP series guarantees the use for ECD applications

To identify the correct order code for your HP410

Start with the model number, then add the appropriate number options from columns A, B & C in the table below followed by the gas to be used.

HP410-1-3-3-Argon specifies a HP410 model in eletropolished stainless steel with outlet pressure of 1-10 bar & compression fitting 3mm outlet, for use with Argon gas.

Material Outlet Pressure Ranges Outlet Options
1 = stainless steel electropolished 1 = 0.5-3 bar 3 = compression fitting 3mm
2 = brass, nickel and matt chrome plated 2 = 1-6 bar 6 = compression fitting 6mm

3 = 1-10 bar 8 = compression fitting 8mm
    10 =  compression fitting 10mm
