HP450

Point of Use Regulator

Wall mounting V-Version (system version)

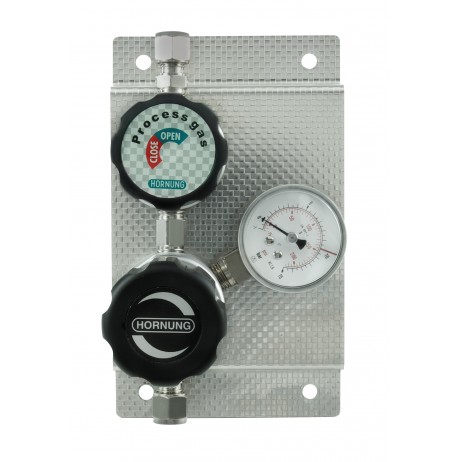

The point of use regulator is ready mounted on a console and is connectred to a permanently laid piping system. It serves as a second stage and reduces the line pressure to an adjustable working pressure.

1 to 5 regulators with a modular dimension of 100mm can be collectively mounted on one bracket.

The HP450 is fitted with a diaphragm shut-off valve and pressure regulator with pressure gauge as standard.

Downloads

Standard Specification

Make an Enquiry

Technical Details
Application Area
Order Details

Body:	stainless steel 1.4404 electropolished or brass, nickel and matt chrome plated
Seat:	PCTFE
Diaphragm:	1.4435 stainless steel
Gas purity:	≤ 6.0
Max. inlet pressure:	40 bar
Outlet pressure ranges:	0.1-1, 0.1-3, 1-6, 1-12 bar
Operating temp.:	-20°C to +70°C
Connections:	inlet: NPT 1/4" f outlet: NPT 1/4" f

Especially for gases with high requirements on purity to 6.0, secure and leak proof.

Through a special cleaning system the pressure regulators are suitable for ECD-applications.

Suitbale for acetylene with the use of a corresponding flash-back arrestor to EN730.

To identify the correct order code for your HP450

Start with the model number, then add the appropriate number options from columns A, B, C & D in the table below followed by the gas to be used.

HP450-1-2-3-1-Argon specifies a HP450 model in stainless steel with 2-fold point of use regulator, outlet pressure range of 1-6 bar & NPT 1/4" female part outlet, for use with Argon gas.

A	B	C	D
Material	Point of Use Regulator	Outlet Pressure Ranges	Outlet Options
1 = stainless steel	1 = 1-fold	1 = 0.1-1 bar	1 = NPT 1/4" f
2 = brass	2 = 2-fold	2 = 0.1-3 bar	2 = compression fitting 6mm
	3 = 3-fold	3 = 1-6 bar
	4 = 4-fold	4 = 1-12 bar
	5 = 5-fold
