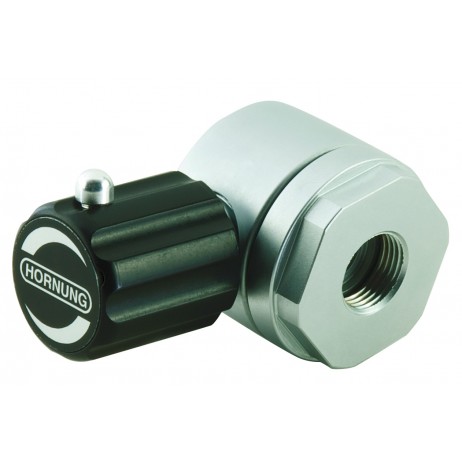

HP502

Shut-off valves for point of use regulators.

Body:	stainless steel 1.4404 electropolished or brass, nickel and matt chrome plated
Diaphragm:	1.4435 stainless steel
Gas purity:	≤ 6.0
Operating temp.:	-20°C to +70°C
Connections:	inlet: G 3/8" f outlet: G 3/8" m

The HP502 is a shut-off valve to be used with pressure regulator HP410 for laboratory benches and wall mounting.

To identify the correct order code for your HP502

Start with the model number, then add the appropriate number options from columns A & B in the table below followed by the gas to be used.

HP502-1-06-Argon specifies a HP502 model in stainless steel with compression fitting 6mm outlet, for use with Argon gas.
