Fine dosage valve

with cylinder valve connection according national standards

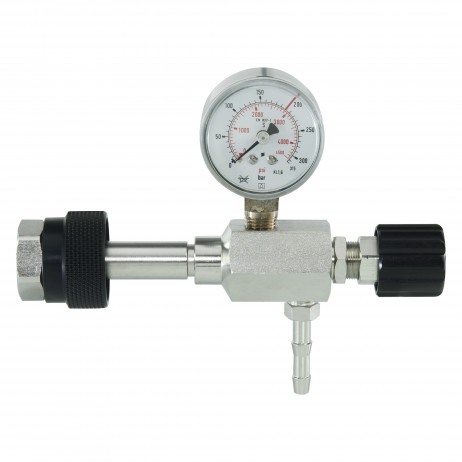

The rossignol metering valve will be fitted directly to the cylinder valve.

Due to the slim conus of the metering spindle the rossignol valve guarantees precise metering.

As an option the valve can be delivered with gauge for indicating cylinder pressure.

The rossignol valve can not be used for pressure control.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: brass, nickel plated or stainless steel
Seat: metering valve
Gaskets: viton
Max. inlet pressure: 200 bar
Flow max: 50 l/min air
Operating temp.: -20°C to +70°C
Dimensions (wxhxd): 146 x 150* x 75 mm

* modification with gauge and nozzle
Weight: 1350 g
Connections: inlet:
DIN 477-1 (or on request)

nozzle 6mm

The metering valve Rossignol will be used for industrial applications as well as for such in laboratories, e.g. for gases (like hydrocabons), where the vapour pressure is low or pressure control is not needed in applications.

To identify the correct order code for your Rossignol

Start with "Rossignol-", then add the appropriate number options from columns A, B, & C  in the table below followed by the gas to be used.

Rossignol-2-1-1-Argon specifies a Rossignol model in stainless steel with NBR gaskets & 6mm nozzle outlet connection, for use with Argon gas.

Material Gaskets
Outlet connection
1 = brass, nickel plated 1 = NBR 0 = 1/4“ NPT - internal thread
2 = stainless steel 2 = viton 1 = nozzle 6 mm
    2 = others
