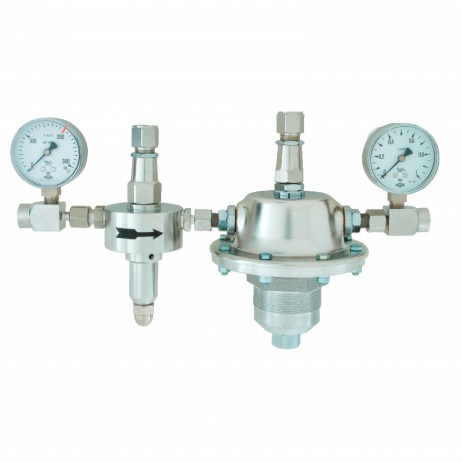

To identify the correct order code for your VDS-PHR
Start with "VDS-PHR-", then add the appropriate number options from columns A, B, C & D in the table below followed by the gas to be used.
VDS-PHR-1-2-1-03-03-Argon specifies a VDS-PHR model in brass with 50mbar outlet pressure ranges, without guages, 3mm inlet & 3mm outlet for use with Argon gas.
A |
B
|
C
|
D
|
Material |
Outlet pressure ranges
|
Gauge |
Options for in- and outlet |
1 = brass |
1 = 30 mbar |
7 = 500 mbar |
1 = without |
00 = G 1/4“ f |
2 = stainless steel
electropolished |
2 = 50 mbar |
8 = 700 mbar |
2 = with working pressure indicator |
03 = compression fitting 3 mm |
|
3 = 70 mbar |
9 = 1000 mbar |
3 = in- and outlet pressure gauges |
06 = compression fitting 6 mm |
|
4 = 100 mbar |
10 = 1500 mbar |
|
08 = compression fitting 8 mm |
|
5 = 200 mbar |
11 = 2000 mbar |
|
10 = compression fitting 10 mm |
|
6 = 300 mbar |
|
|
12 = compression fitting 12 mm |
