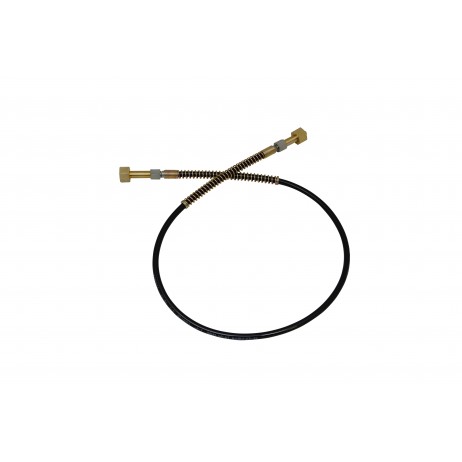

Cylinder and Bundle Connecting Hose

Two available:

Plastic hose for cylinder battery and cylinder bundle
Metal corrugated hose for cylinder battery and cylinder bundle.

Connection hoses are flexible high pressure hoses and connect the cylinder or a cylinder bundle to the high pressure manifold with non-return valve.

NOTE: Only metal corrugated hose is allowed with Oxygen.

Make an Enquiry

Order Details

To identify the correct order code for your cylinder or bundle connecting hose

Products available include a cylinder connecting hose 200 bar, bundle connecting hose 200 bar, cylinder connecting hose 300 bar or bundle connecting hose 300 bar. Each of these vary in length gas type and material. The tables below identify the correct order no. for each variation.

CYLINDER CONNECTING HOSE 200 BAR OF LENGTH 1000MM

Order No.	Gas Type	Material
910420	Nitrogen	Plastic hose
910320	Inert gas	Plastic hose
910620	Hydrogen	Plastic hose
910520	Compressed air	Plastic hose
910121	Oxygen	Metal corrugated hose 1.4541
910421	Nitrogen	Metal corrugated hose 4.4541
910321	Inert gas	Metal corrugated hose 4.4541
910621	Hydrogen	Metal corrugated hose 4.4541
910521	Compressed air	Metal corrugated hose 4.4541

BUNDLE CONNECTING HOSE 200 BAR OF LENGTH 1500MM

Order No.	Gas Type	Material
910422	Nitrogen	Plastic hose
910322	Inert gas	Plastic hose
910622	Hydrogen	Plastic hose
910522	Compressed air	Plastic hose
910123	Oxygen	Metal corrugated hose 1.4541
910423	Nitrogen	Metal corrugated hose 4.4541
910323	Inert gas	Metal corrugated hose 4.4541
910623	Hydrogen	Metal corrugated hose 4.4541
910523	Compressed air	Metal corrugated hose 4.4541

CYLINDER CONNECTING HOSE 300 BAR OF LENGTH 1000MM

Order No.	Gas Type	Material
911320	Non-flammable gas	Plastic hose
911630	Flammable gas	Plastic hose
910530	Compressed air	Plastic hose
910131	Oxygen	Metal corrugated hose 1.4541
911631	Flammable gas	Metal corrugated hose 1.4541
910531	Compressed air	Metal corrugated hose 4.4541

BUNDLE CONNECTING HOSE 300 BAR OF LENGTH 1500MM

Order No.	Gas Type	Material
911332	Non-flammable gas	Plastic hose
911632	Flammable gas	Plastic hose
910532	Compressed air	Plastic hose
910133	Oxygen	Metal corrugated hose 1.4541
911633	Flammable gas	Metal corrugated hose 1.4541
910533	Compressed air	Metal corrugated hose 4.4541
