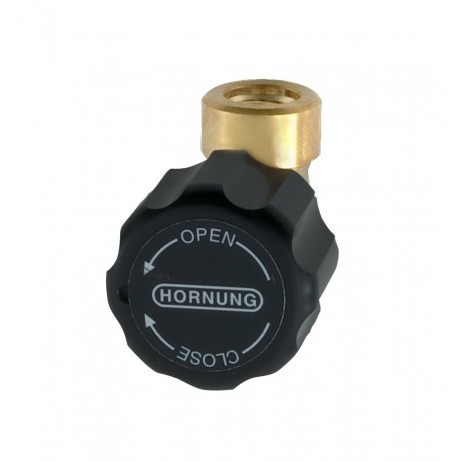

DV4

DV4

Dosage Valve

The dosage valve DV4 distinguishes itself through its compact structure and replaceability of its functioning components. Its dosage function guarantees a safe application in low and high pressure ranges.

It ensures a safe gas supply dosage at a pressure range of up to 300 bar.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: brass
Max. inlet pressure: 300 bar
Operating temp.: -20°C to +70°C
  • The dosage valve DV4 is suitable for applications with flammable, non-flammable and as well as toxic gases.
  • The dosage valve DV4 is available in an angle and globe pattern.
  • Serves the purpose of an integrated component nee ded in pressure regulators and piping installations.
  • The use of a metallic dosage piston ensures necessary heat-resistance when dealing with an oxygen integrated application.

To identify the correct order code for your DV4

Choose the version according to illustration here.

Start with the model number, then add the appropriate number options from column A in the table below followed by the gas to be used.

DV4-1-Argon specifies a DV4 model in version 1 with stainless steel gasket, for use with Argon gas.

A
Version
1
2
