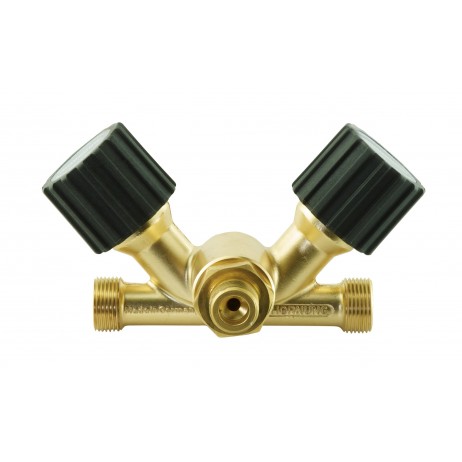

DV5

With the double shut-off valve the gas supply can be manually changed from empty to full bottles without interrupting the gas supply.

Made of brass. A bracket can be supplied for wall mounting.

Suitable for non-aggressive, flammable and non-flammable gases.

To identify the correct order code for your DV5

This model comes in two versions. Please choose from the two below. Request a DV5 followed by the version number.

	Model	Gas Type	Inlet Pressure	Nominal Diameter	Inlet Connection	Outlet Connection
1	DV 5	F, NF, NC	max. 200 bar	Ø 5mm	2 x G 3/4 DIN 477	W 21, 8 x 1/14 DIN 477-1
2	DV 5	F, NF, NC	max. 300 bar	Ø 5mm	2 x S16 DIN 2353	W 30 x 2 DIN 477-5
