Fine Filter

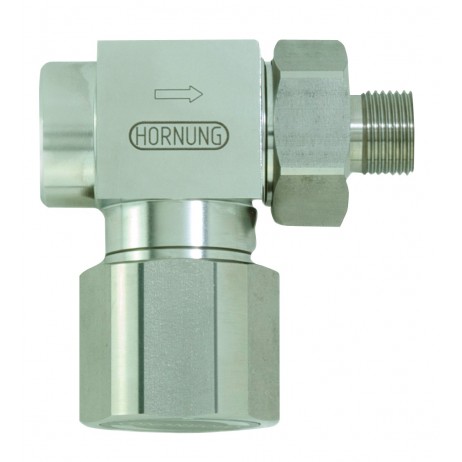

The high pressure filter F2 is a stainless steel 1.4404 or brass manufactured fine filter with a replaceable filter element made of sintered bronze or stainless steel.

The built-in filter element holds back solid particles to 20 or 40 micron and permits only cleansed gases or liquids to flow to the following equipment.

This fine filter is equipped with a standard internal thread G 3/8” m at the inlet and G 3/8 ” f at the outlet.

In order to constantly have the maximum flow capacity available, it is advisable to periodically examine the filter element and replace when necessary.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: brass / stainless steel
Max. inlet pressure: 420 bar
Operating temp.: -20°C to +70°C
Connections: inlet: G 3/8” m. outlet: G 3/8” f.

Urgently recommend the use of this filter element in connection with our pressure regulators, where the accuracy and life span of pressure-regulators can be substantially increased with a clean medium.

Further application areas exist in high pressure pneumatics for the protection of sensitive measuring equipment and controllers.

To identify the correct order code for your FH2

Start with the model number, then add the appropriate number options from columns A & B in the table below followed by the gas to be used.

FH2-1-1-Argon specifies a FH2 model in brass with bronze 20 μ filter element, for use with Argon gas.

Material Filter Element
1 = brass 1= bronze 20 μ
2 = stainless steel = bronze 40 μ
  = stainless steel 20 μ

4 = stainless steel 35 μ
