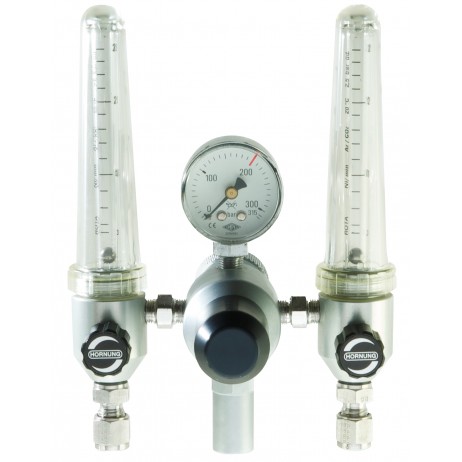

Cylinder Pressure Regulator

The cylinder pressure regulators from the series FL are equipped with 1 / 2 or 3 measurement tubes.

It reduces cylinder pressure of compressed gases from a max. of 200 bar down to the outlet flow shown on the flowmeter measurement tube.

The integrated balanced poppet ensures a constant and uniform pressure throughout the emptying of the cylinder.

The exact amount of flow in l/min can be preset and read on the flowmeter measurement tubes.

The pressure regulator is fitted as standard with gas specific connections to DIN 477. A relief valve is also fitted.

The pressure regulator can be supplied as 1, 2 or 3x flowmeter with different measuring ranges.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: brass, matt chrome plated
Diaphragm: 1.4435 stainless steel
Max. inlet pressure: 200 bar
Operating temp.: 20°C to +70°C
Connections: outlet: G 1/8" f

The cylinder pressure regulator FL are used where an exact dosage of the flow is required.

Gas types:

  • Co2/ Argon
  • inert gas
  • other gas types on request

To identify the correct order code for your FL

Start with the model number, then add the appropriate number options from columns A, B & C in the table below followed by the gas to be used.

FL-1-1-2-Argon specifies a FL model with 1 measurement tube, 2-18 l/min measuring area & 6mm compression fitting outlet, for use with Argon gas.

No. of Measurement Tubes Measuring Area Outlet Option
1 = 1 measurement tube 1 = 2-18 l/min 1 = G 1/8" f
2 = 2 measurement tubes = 3-28 l/min
2 = compression fitting 6mm
3 = 3 measurement tubes
3 = hose nozzle (d=6.3mm)
