Gas Manifold Portable

Gas Manifold Portable

Gas Manifold Portable

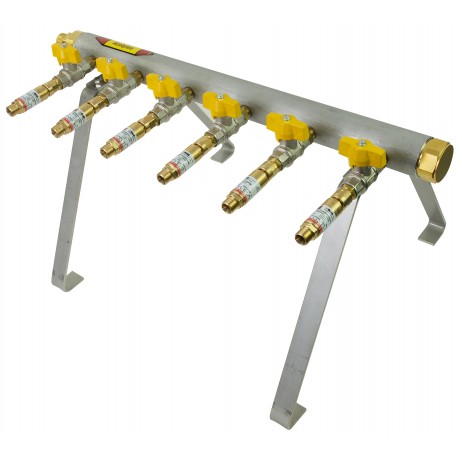

The gas manifold portable serves the purpose of providing gas up to 6 points of use.

The portable design enables use on different locations e.g. construction sites.

This manifold is designed for use with an inlet pressure of max. 20 bar.

Depending on the application, there is the possibility to install a point of use pressure regulator or flowmeter.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: stainless steel and brass
Seat: viton
Max. inlet pressure: 20 bar
Operating temp.: -20°C to +60°C
Connections: INLET: Acetylene + flammable gases: G 3/4 DIN 8542. Non-flammable gases + O2: G 1/2 DIN 8542. OUTLET: Acetylene + flammable gases: G 3/8 DIN 8542. Non-flammable gases + O2: G 3/8 DIN 8542.

The gas manifold can be supplied for different gases:

  • Non-flammable gases
  • Flammable gases
  • Acetylene
  • Oxygen

To identify the correct order code for your gas manifold portable

Start with the name of the product then add the appropriate order number depending on the gas used.

Order No. Gas
0601 Oxygen
0602 Acetylene
0613 Non-flammable gases
0616 Flammable gases
