High Pressure Connections SLR

High Pressure Connections SLR

High Pressure Connections SLR

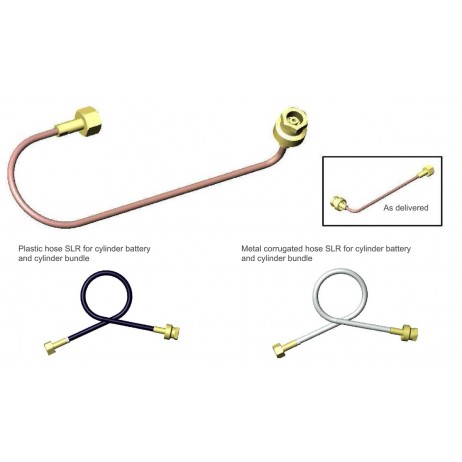

Elbow connection tubes are flexible copper tubes and connect the cylinder to the distributing main with a non-return valve. Delivery condition: single bend, cylinder side.

Advantage: Copper tubes, as opposed to plastic hose; do not require the prescribed annual inspection. Connection hose SLR are flexible high pressure hose and connect the cylinder or a cylinder bundle to the distributing main with a non-return valve.

NOTE: Only metal corrugated hose is allowed with oxygen.

All three variations were conceived specially for the distributing main with non-return valves.

The variations for ordering are:

  • Elbow connection tube SLR for cylinder battery, PN 200 bar
  • Plastic hose SLR for cylinder battery, PN 200 bar
  • Plastic hose SLR for cylinder bundle, PN 200 bar
  • Metal corrugated hose SLR for cylinder battery, PN 200 bar
  • Metal corrugated hose SLR for cylinder bundle, PN 200 bar
  • Elbow connection tube SLR for cylinder battery, PN 300 bar
  • Plastic hose SLR for cylinder battery, PN 300 bar
  • Plastic hose SLR for cylinder bundle, PN 300 bar
  • Metal corrugated hose SLR for cylinder battery, PN 300 bar
  • Metal corrugated hose SLR for cylinder bundle, PN 300 bar

Other connections ,dimensions and details available on request!

Make an Enquiry

  • Order Details

To identify the correct order code for your high pressure connections SLR

Hornung provide a number of tables to help you find your order number for the different variations. The tables can be found here. (Please note the tables continue for two pages)
