Line Pressure Regulator

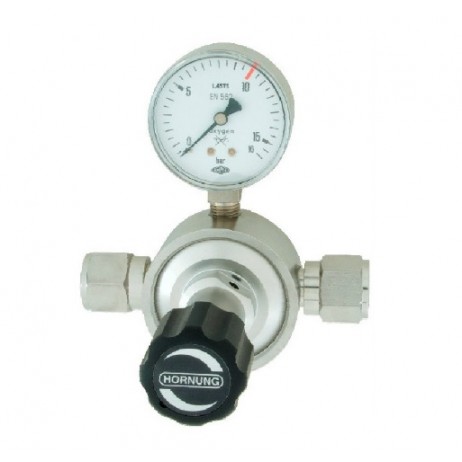

The pressure regulator PR 5 / VA is a single stage line pressure regulator in stainless steel.

In the standard configuration the regulator is fitted with a stainless steel diaphragm. The regulator can also be fitted with an optional outlet gauge.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: stainless steel 1.4404 electropolished
Diaphragm: 1.4435 stainless steel
Max. inlet pressure: 35 bar
Operating temp.: -20°C to +70°C
Connections: G 1/4" f - G 1/2" f DIN EN 560

The PR5 in stainless steel is suitable for use with corrosive and technical gases and liquids.

Urgently recommend the connection of afine filter, with at least 40 μ, before the pressure regulator, as well as to protect following components with suitable relief valves against unduly high pressures.

To identify the correct order code for your PR5/VA

Start with the model number, then add the appropriate number options from columns A, B, C & D in the table below followed by the gas to be used.

PR5/VA-1-2-1-1-Argon specifies a PR5/VA model in horizontal configuration with a gauge, a pressure range of 0.1-1 bar & in- outlet option of G 1/4" female part, for use with Argon gas.

Configuration Gauge Pressure Ranges Outlet and Inlet Option
1 = horizontal 1 = without gauge 1 = 0.1-1 bar 1 = G 1/4" f
2 = vertical 2 = with gauge 2 = 0.1-2.5 bar 2 = G 1/2" f

  3 = 1-6 bar
4 = 1-10 bar
    5 = 1-16 bar
6 = 1-30 bar
