RK1

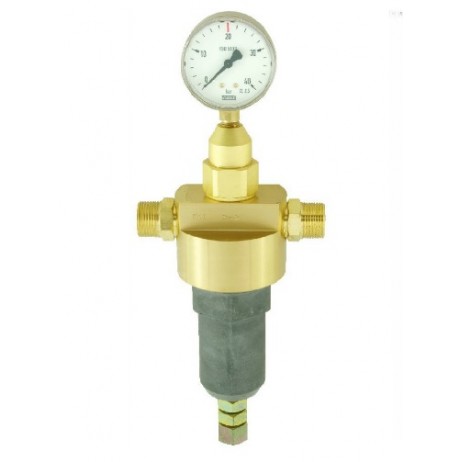

Line Pressure Regulator

The pressure regulator RK1 is for the installation in line systems with large gas flows. For example flame cutting installations. The RK1 is in brass for flammable and non-flammable gases.

The RK1 regulator can be supplied with an outlet manometer or relief valve. A bracket for wall mounting is also available.

Make an Enquiry

Technical Details
Order Details

Max. inlet pressure:	35 bar
Outlet pressure ranges:	max. 30 bar
Connections:	inlet: G 1/2 DIN EN 560. outlet: G 1/2 DIN EN 560
Gas:	F, NF, NC, T
Model:	RK 1

To identify the correct order code for your RK1

Start with the model number, then add the appropriate number options from column A in the table below followed by the gas to be used.

RK1-1-Argon specifies a RK1 model with outlet manometer, for use with Argon gas. A bracket for wall mounting is also available on request.

1 = outlet manometer

2 = relief valve
