ZD400

ZD400

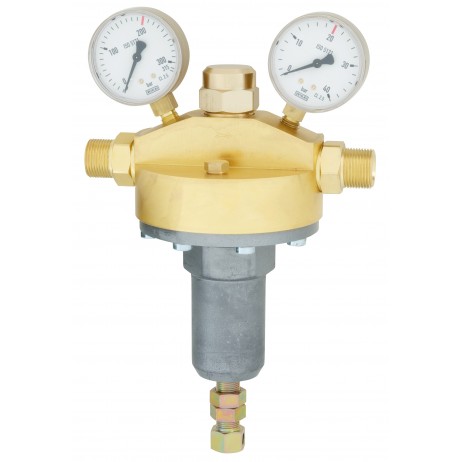

Line Pressure Regulator

The pressure regulator ZD400 reduces the max. inlet pressure of 300 bar down to a max. outlet pressure of 20 bar.

The ZD400 is a single stage diaphragm controlled regulator with an inlet pressure compensator.

A specifically constructed piston version assures constancy in pressure. BAM certified for oxygen.

Make an Enquiry

  • Technical Details
  • Order Details
Max. inlet pressure: 300 bar
Outlet pressure ranges: max. 0-20 bar
Connections: inlet: G 3/4". outlet: G 1".
Gas: NF, F. NC
Model: ZD 400

To identify the correct order code for your ZD400

Simply request a 'ZD400 line pressure regulator' as there are no optional components for this product.
