ZD60 / PR7

ZD60 / PR7

Pressure Controlling Station

2x1 cylinder (bundle) single or multi-stage pressure controlling station with a self-acting switch

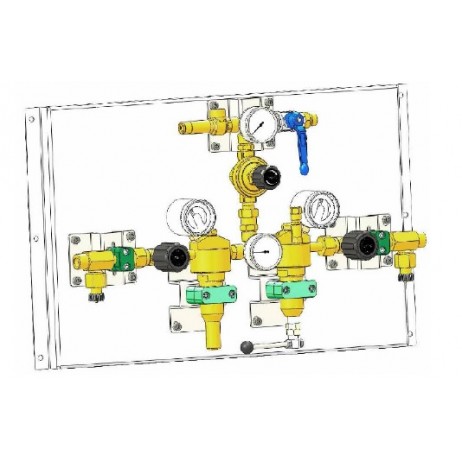

The pressure controlling station ZD 60/ PR 7 is a single or dual-stage pressure controlling station with a self-acting switch.

It’s main purpose is the ensured withdrawal of gases and gas mixtures from gas cylinders.

The self-acting function of a two-stage station is activated as soon as the pressure on the primary stage descends below a preset value.

The pressure reduction is controlled by two integrated pressure control regulators conected by exhausts. This enables an exchange of gas cylinders without an interruption of gas supply.

The station is mounted on brackets and possesses an inlet and an outlet gauge as well as an exhaust and a cut-off valve for the process gas.

Make an Enquiry

  • Technical Details
  • Application Area
  • Order Details
Body: brass
Seat: polyamid
Diaphragm: 1.4301 stainless steel
Max. inlet pressure: 300 bar
Outlet pressure ranges: 2 STAGE: 6-16 bar. SINGLE STAGE: 10-30 bar.
Operating temp.: 20°C to +60°C
Connections: ES: G 3/4“ DIN 477. AS: G 1/2“ DIN 8542

Especially for gases with safety and impermeability requirements, as well as for the assurance of an uninterrupted gas supply overnight and during the weekends. An enhancement of the gas supplying concept is achieved by an optional integration of a gauge and a gas leakage warning device.

To identify the correct order code for your ZD60/PR7

Start with the model number, then add the appropriate number options from columns A, B, C & D in the table below followed by the gas to be used.

ZD60/PR7-1-2-1-1-Argon specifies a ZD60/PR7 model with 200 bar inlet pressure, 10 bar outlet, single stage and a standardised gauge, for use with Argon gas.

Inlet Pressure Outlet Pressure Stages Gauge
1 = 200 bar 1 = 6 bar 1 = single stage 1 = standardised gauge
2 = 300 bar 2 = 10 bar 2 = dual stage = inductive gauge

3 = 16 bar 3 = 30 bar (single stage)
